How To Use DISM Command Tool To Fix Windows 10 Image

How To Use DISM Command Tool To Fix Windows 10 Image

/ Sedfrey Galope

Sometimes having corrupted files or missing files will lead to problems with Windows 10. In this guide, you will see methods on how to use DISM to fix this problem. Deployment Image Servicing and Management in Windows 10 is a command-line tool for administrators and users to modify and repair system images.

DISM can be used for various needs such as Windows Setup, Windows Recovery Environment, Windows PE (WinPE), and Windows Setup.

Note: DISM command tools are typically non-destructive. However, since you will be making considerable changes in your system, it is best always to back up all your essential files.

Use DISM Command Tool

The deployment Image Servicing and Management (DISM) command tool has three options to fix Windows 10 images. You can choose between “CheckHealth,” “ScanHealth,” and “RestoreHealth.”

Note: Depending on the problem you want to fix, you may want to use “RestoreHealth” to repair any locally available image using various source files.

Windows Instant Repair Tool

Windows 10
System Information
  • Your machine is currently running Windows 10
  • This Repair Utility is compatible with your operating system.

Recommended: To repair Windows 10 Errors, use this software package; Restoro System Repair. This repair tool has been proven to identify and fix these errors and other Windows problems with very high efficiency.

Norton Digicert
  • 100% safe as confirmed by Norton.
  • Only your system and hardware are evaluated.

DISM command with CheckHealth option

DISM’s CheckHealth command tool allows users to quickly determine any corrupt files in the local Windows 10 image. CheckHealth command tool does not perform other repairs, though.

  1. Press the “windows” + “R” keys and hold down the “ctrl + shift” keys at the same time and press “enter”. A small window will appear where you can type “CMD”.
image 95
  1. The command prompt window will open, type in “DISM.exe /Online /Cleanup-image /checkhealth” and then press “enter”.
DISM Checkhealth
  1. Once done, DISM will run and verify if your PC is experiencing data corruption.

DISM command with ScanHealth option

Use ScanHealth to perform a more advanced scan. This will help determine if your Microsoft Windows operating system’s image has any problems.

  1. Press the “windows” + “R” keys and hold down the “ctrl + shift” keys at the same time and press “enter”. A small window will appear where you can type “CMD”.
image 95

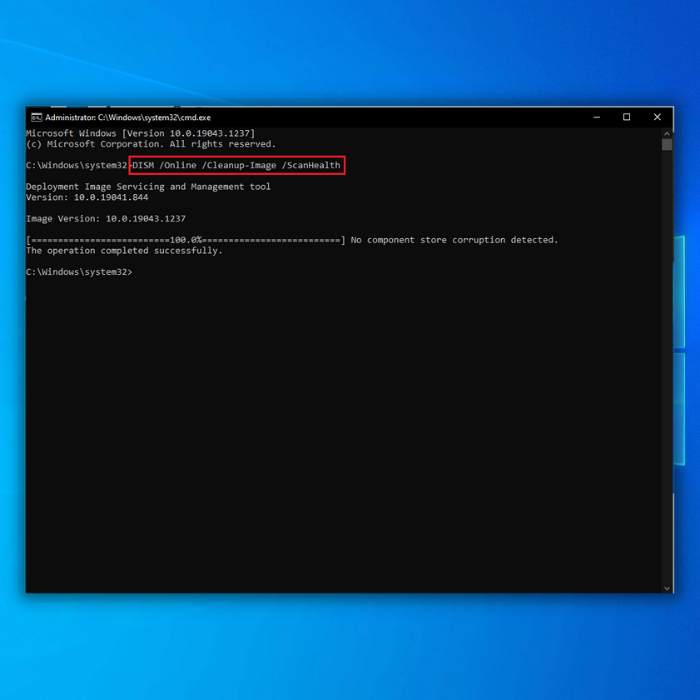

  1. Next, type the following command and press Enter:

DISM /Online /Cleanup-Image /ScanHealth

DISM Scanhealth
  1. Once done, DISM will run and verify if your PC is experiencing data corruption.

DISM command with RestoreHealth option

RestoreHealth option helps you scan problematic areas in your system.

  1. Press the “windows” + “R” keys and hold down the “ctrl + shift” keys at the same time and press “enter”. A small window will appear where you can type “CMD”.
image 95
  1. Next, type the following command and press Enter:

DISM /Online /Cleanup-Image /RestoreHealth

DISM Restorehealth
  1. Once done, DISM will run and verify if your PC has any corrupt or missing files.

Repair Windows 10 issues with DISM using install.wim image

Most of the time, the DISM command scans without any problems. However, if you have damaged files or cannot connect to the Internet, you’ll need another way to complete the task.

You have the option such as using “install.wim” or “install.esd” file from a different computer. You can use a bootable install media or Windows 10 ISO file. If you do this option, check if the files match the Windows 10 edition, version, and language.

Download Windows 10 ISO file

If you opt to use a source for the files, it is highly recommended to use the Media Creation Tool. Media Creation Tool is the best way to download and prepare a new copy of Windows 10.

  1. Open this Microsoft support website and download your new copy of Microsoft 10.
Download Windows 10
  1. Double-click the MediaCreationToolxxxx.exe file to launch the setup.

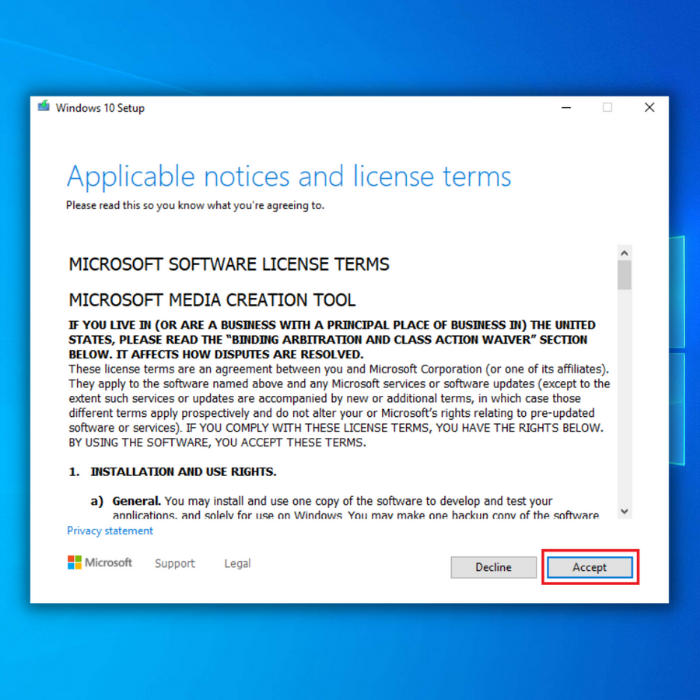

  2. Next, Click the “Accept” button to agree to the terms.
Windows 10 Setup

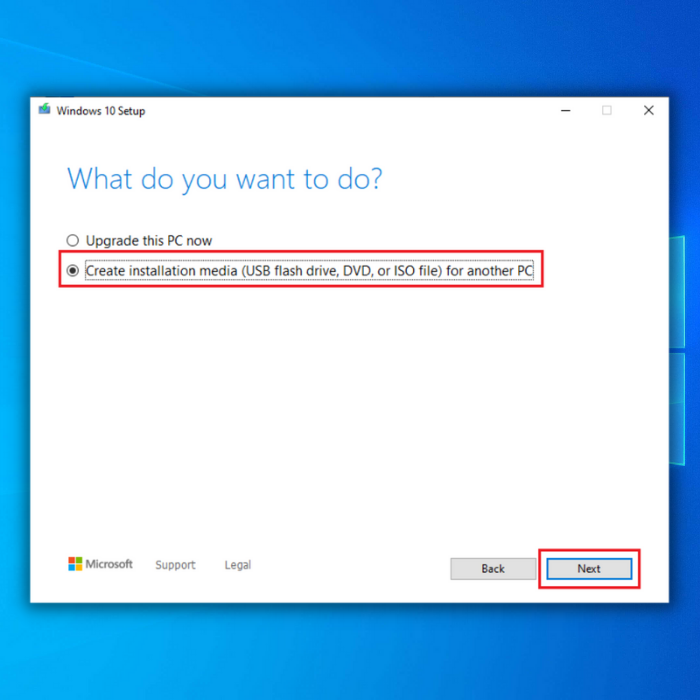

  1. Choose the Create installation media (USB flash drive, DVD, or ISO file) for another PC option.
  2. Click on the “Next” button. This will open a new window and click on the “Next” button again.
Windows 10 Setup 1

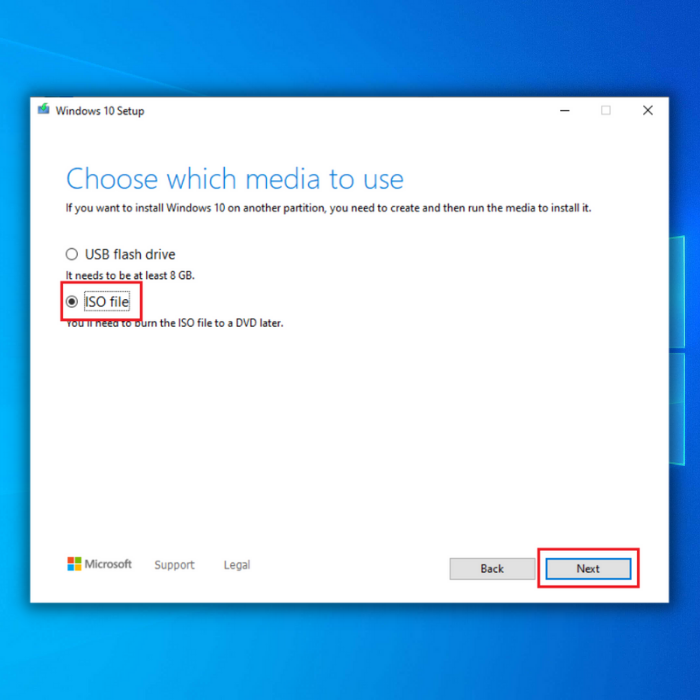

  1. Choose the “ISO file option” and click “Next”.
Windows 10 Setup 2
  1. Choose the destination where you will store the Windows 10 ISO file and click on “Save” button. It will then start to download the ISO file.
Windows 10 Setup 3
  1. Click the link. This will open the file location with “File Explorer”.
  2. Click the “Finish” button.
  3. Double-click the “Windows.iso” file to mount the image.
  4. Next, under the “This PC” section, confirm the drive letter for the mount in the left pane.

Once completed, you can continue with the DISM tool using the “Source” option to fix the local image of Windows 10.

Fix Windows 10 recovery image

To use DISM (Deployment Image Servicing and Management) tool with an alternate source (install.wim) image, follow these steps:

  1. Press the “windows” + “R” keys and hold down the “ctrl + shift” keys at the same time and press “enter”. A small window will appear where you can type “CMD”.
image 95

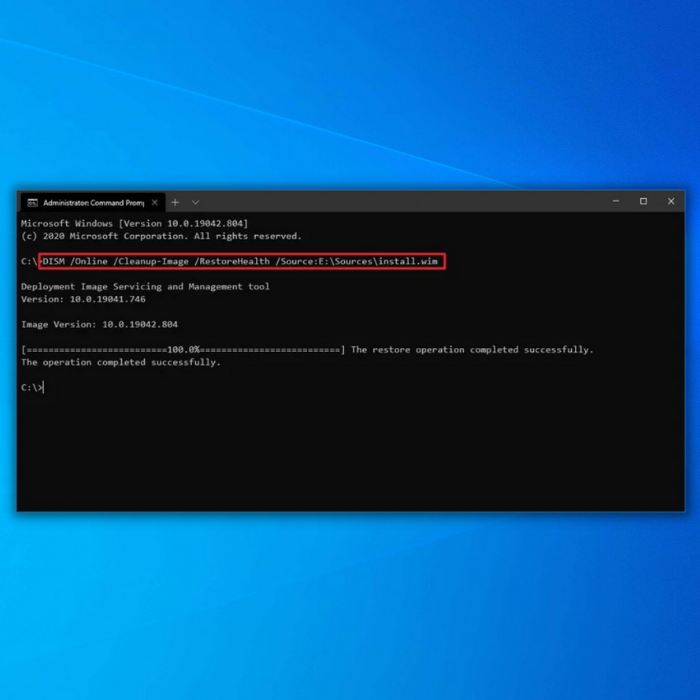

  1. Next, type the following commands and press “Enter”:

DISM /Online /Cleanup-Image /RestoreHealth/Source:E:\Sources\install.wim

Replace “F” with the drive letter to the ISO mount point in File Explorer in the command.

install

Fix problems with DISM with ESD image

Moreover, if you have encrypted “install.esd” image, you can also use DISM to repair the damaged files.

  1. Click on the Windows icon and type “Command Prompt”.
  2. Right-click the top result and Run Command Prompt as administrator.

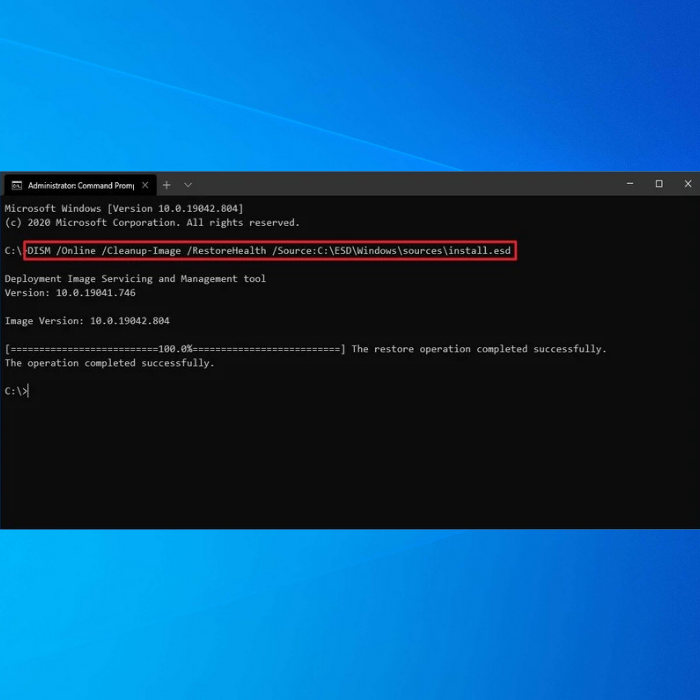

  3. Next, you can type the following command to repair the image with an “install.esd” file and press Enter:

DISM /Online /Cleanup-Image /RestoreHealth /Source:C:\ESD\Windows\sources\install.esd

install 1
  1. In the command, change C:\ESD\Windows\sources with the path that corresponds to the location of the “.esd” file (if applicable).

Final Words

Performing any of the mentioned steps may be intimidating, especially if you do not have the technical knowledge of making admin-level changes. However, if you follow our steps carefully, then you will be able to enjoy the benefits of knowing how to perform DISM commands to fix issues with your computer.
